Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71573

Application:

It is suitable for dry or wet rooms and installaion without strong

Stress or free continuous reciprocating movement. It is also can

be used in working places of woodworking Machine, machine tool

equipment, logistics conveyer system, crane and other related

equipments. For the short pitch, it has excellent crosstalk resista

nce property.


Properties:

Waterproofing: oil resistance; cool resistance; abrasion resistance;

Flame resistance; anti-ultraviolet.

Bending for life: above 5,000,000 times.


Structure:

Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295

Class 6

Insulation: special pvc

Colour: ≤ 0.5mm brown, black, blue, purple, pink, orange

≥ 0.5mm black number with white digital coding.

3 cores or more with green/yellow earth wire

Inner sheath:without

Shielding: tinned copper brainded shielding

dentity: above 80%

Sheath: special PVC; black (RAL 9005) or grey (RAL 7001)

Related voltage: ≥ 0.5mm: 300/500V ≤ 0.5mm: 300/300Vgv

Test voltage: 2500V

Temperature range:

Fixed Installaion: -30℃ ----- +90℃

Flexing Installation: -5℃---- +90℃

The minimum bending radius:

Fixed Installation: 5X external diameter

Flexing installation: When travel <10m,bending radius of 8xd
When travel >10m,bending radius of 10xd

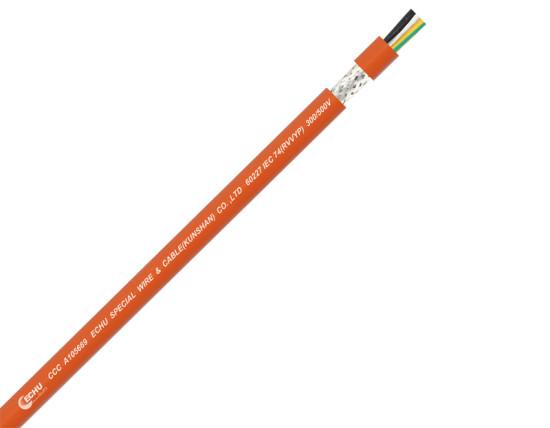

Shielded and Twisted Pair Special PVC Cable for Drag Chains-EKM71573 Images
